750W/1500W peak
High-Power Motor
52V 20Ah
Battery
100 Miles
Max Range (est.)
450 lbs
Max Load
Hydraulic
Disc Brakes
28 MPH
Top Speed (PAS)

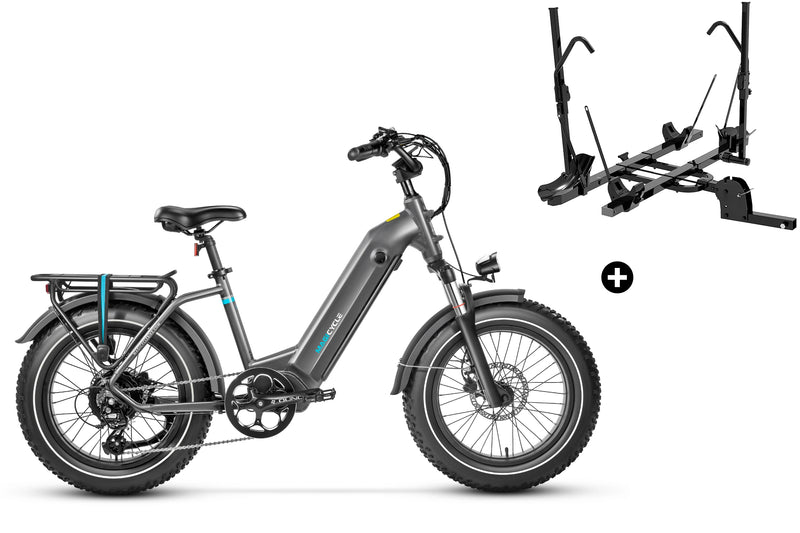

Bundle Sale - Magicycle Ocelot Pro E-Bike With A Hitch Bike Rack
Design for your road adventure trip
$1,649.00
$2,798.00
Space Gray
"In stock, ready to ship"
Color: Space Gray
Color: Space Gray
"In stock, ready to ship"
Limited Special Offer: With A Hitch Bike Rack
-
+
ADD TO CART
Sold Out
+ ADDED
Passenger Package
$75.99
+ ADDED
Pet Travel Package
$245.98
$169.99
+ ADDED
Set Package D
$91.97
$72.99
+ ADDED
Large Ebike Rear Basket with Liner & Cargo Net
$139.00
+ ADDED
Deemount E-Bike Handlebar Extender Lightweight
$29.99
+ ADDED
Cargo Package
$258.99
$169.00
+ ADDED
City Biking Package A
$126.97
$95.20
+ ADDED
Handmade Handlebar Classic Willow Basket
$62.00
Add & Save 10%
Show (8) more...
Come with
Save $301.97
Full Fenders
$107.99Free
Repair Tool Kit
$19Free
Front & Tail Lights
$75.98Free
Rear Rack
$99Free
FEATURES
Ocelot Pro Ebike
1500W 100Nm Motor
With the 750W/1500W peak power output, you can reach your potential and push your limit. Embrace the true happiness and fun that comes from the power.
52V 20Ah Battery
The 52V 20Ah battery system leads to improved efficiency, a longer range and an extended battery life. No worries about battery fire with the BMS built inside.
Hydraulic Disc Brakes
Stay safe wherever you go with hydraulic disc brakes. Get the amazing and responsive braking power at the flick of your fingers. You will be confident on every ride.

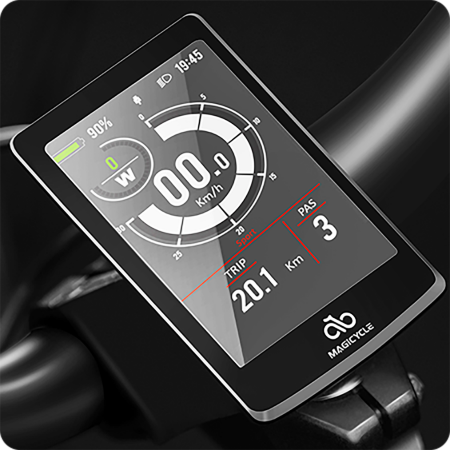

Color LCD Display
IPX6 grade water-resistant and premium components, the display is designed to be seen clearly even when exposed to sunlight, rain, or any other conditions. Get the real-time data on it. Come and customize your rides with it, a variety of functions are waiting for you to explore.
Puncture Resistant Fat Tires
The premium tires feature reflective sidewall striping and a dual tread compound for extended tread life and reliable grip in wet or loose conditions. Whether you're riding on concrete, gravel paths, or forest roads, these tires provide a secure and confident ride wherever your journey takes you.
Zoom Hydraulic Front Fork
Efficiently absorb shocks and vibrations during off-road rides. Equipped with lockable and adjustable features, the front fork effortlessly tackles any terrain, alleviating riding fatigue and ensuring smooth journeys.
Brake Light
Be seen and safe with the brake light. Activate it with a gentle pull of the brake lever.
Tailor-fit comfort. For every rider.
Size guide
Size Guide
Bike Dimension
Size Guide
Bike Dimension
40in
40in
Specification
Battery
52V 20Ah lithium battery
Display
Color LCD Display with USB Charging
Charger
Short-circuit proof 3.0A fast smart charger
Charging Time
4 - 6 Hours
Range
100 miles
Total Payload Capacity
Max: 450lbs
Controller
52V 750W FOC smart controller, Current Range 20~25 Amps (IPX8)
Weight
73lbs/33kg
Hub Motor
750W/1500W(peak) 100Nm brushless gear motor
Frame size
20"
Recommended Rider Heights
4'10" - 6'2"
Pedal Assist
Intelligent 7 levels pedal assist with 12 magnet cadence sensor
Package Dimension
61" x 14" x 35"
Components
Tires
20"x4.0" fat tires
Front Light
6V LED light
Front Fork
Alloy Hydraulic lockout suspension fork
Chain
KMC chain
Brake Lever
Aluminum alloy comfort grip levers with motor cutoff switch
Saddle
Super Soft Cushion
Throttle
Half twist throttle
Stem
MA-400 SSABK
Lights
Integrated front and brake lights
Seat Post
Diameter 30.9mm length 300mm
Pedal
Wellgo alloy pedal with reflectors
Crank
48T, 170mm forged alloy, dual-sided bashguard
Freewheel
Shimano-14-28T BROWN/BK
Kickstand
Heavy Duty Aluminum
Bike Frame
20" 6061 Aluminum Frame
Gearing
Shimano 7 Speed Gear Shift System
Brake
180mm Hydraulic Disc Brakes
Spokes
13 Gauge on the Front / 12 Gauge on the Back
Click to view >
Ocelot Pro FAQ
What's the frame difference between the Ocelot Pro and other brands?
The down tube of the Ocelot Pro is formed by a multi-cavity oil injection process. The thickness of the tube wall is designed to be 4-5mm, while the ebike industry usually has a thickness of only 3mm, and it is a single cavity.
This technology solves the problems of insufficient strength of the step-thru model down tube in the bike industry, soft frame, handlebar shaking, and rear wheel throwing when going downhill or getting off the bike.
This technology solves the problems of insufficient strength of the step-thru model down tube in the bike industry, soft frame, handlebar shaking, and rear wheel throwing when going downhill or getting off the bike.
What's the special point of the Ocelot Pro's battery box?
①The battery box adopts the hidden design, which is integrated with the lower tube of the frame, which makes the appearance of the Ocelot Pro more elegant and smooth, evenly dividing the front and rear center of gravity of the bike to form a more compact body.
②The battery box with a dual lock design, one lock is anti-theft, and the other one is anti-fall. Prevent the battery from falling off when you‘re riding on a tough paved road, keep your battery safe.
②The battery box with a dual lock design, one lock is anti-theft, and the other one is anti-fall. Prevent the battery from falling off when you‘re riding on a tough paved road, keep your battery safe.
What are the effects and functions of the hydraulic suspension front fork?
Alloy front suspension fork with lockout and adjustment, 80mm travel distance. The hydraulic suspension front fork allows the wheel to "travel" along the fork for a few inches. This dynamic movement helps absorb the jarring impact of rough terrain and gives the rider a more comfortable ride.
How fast does Magicycle Ocelot Pro go using the throttle?
The default speed setting is 20mph, Magicycle Ocelot Pro is able to reach 28mph.
How to reach 28 mph?
The default speed setting is 20mph, Magicyclebike is able to reach 28mph (45km).
First, press the "+" and "-" buttons at the same time. Then the setting page shows up in the display.
Second, select the "Advanced" option and press the "i" button to open the advanced setting page.
Third, select the "Power Set" option, which determines how many levels the pedal assistance provides. The default value is 0-7. Set it to 0-5 and then press the "i" button to save it. After this, a small sub-page will come up showing the voltage percentage that is put on each level of pedal assistance. Set level 5 from 96% to 100%.
First, press the "+" and "-" buttons at the same time. Then the setting page shows up in the display.
Second, select the "Advanced" option and press the "i" button to open the advanced setting page.
Third, select the "Power Set" option, which determines how many levels the pedal assistance provides. The default value is 0-7. Set it to 0-5 and then press the "i" button to save it. After this, a small sub-page will come up showing the voltage percentage that is put on each level of pedal assistance. Set level 5 from 96% to 100%.
Does my height suit Magicycle Ocelot Pro?
The recommended rider height is 4'10" ~ 6'2". The Lower step-thru frame and ground clearance of only 286mm, make it easier and more comfortable for riders with small heights to ride.
Can I use the throttle in pedal assist mode?
Yes, both models can be used.
How water-resistant is the Magicycle Ocelot Pro?
The Magicycle Ocelot Pro controller is IPX8, and other electronic components (Battery/ Motor) are IPX6.
What's the Ebike Classification of Magicycle Ocelot Pro?
The factory default setting of the Magicycle Ocelot Pro is Class 2, but it can be unlocked to Class 3.
What's in the Ocelot Pro gift package?
①Bike Repair Tool ($19 Value): We carefully selected the following repair tools according to our ebike features: 3 wrenches, 6 Allen Wrenches, and 1 screwdriver.
②Magicycle Full Fenders ($107.99 Value): Reducing the amount of water, mud, and grime that sprays up into your face, all over your bike and your backside is enough to warrant their use.
③Magicycle Rear Rack ($99 Value): Provides a stable framework to hold gear on your ebike.
④Front & Rear Lights ($75.98 Value): Integrated front and rear lights keep you to be seen all the time.
②Magicycle Full Fenders ($107.99 Value): Reducing the amount of water, mud, and grime that sprays up into your face, all over your bike and your backside is enough to warrant their use.
③Magicycle Rear Rack ($99 Value): Provides a stable framework to hold gear on your ebike.
④Front & Rear Lights ($75.98 Value): Integrated front and rear lights keep you to be seen all the time.
What kind of weather can I ride in?
Magicycle is built to the IPX6 water-resistant standard. It indicates your bike is resistant to multi-directional water splashes, meaning it is okay to ride or park your Magicycle in the rain. Light to moderate raindrops or splashes from a wet road will not harm your ebike, but be wary of harsher weather and rainfall conditions. Additionally, do not stay too long in heavy rain.
The general rule of thumb is, if weather impacts your visibility and has the possibility to affect your bike's functionality, it is likely not a safe riding condition. With that in mind, safe riding!
The general rule of thumb is, if weather impacts your visibility and has the possibility to affect your bike's functionality, it is likely not a safe riding condition. With that in mind, safe riding!
What's the ride modes?
Magicycle has 3 ride modes: throttle-only, pedal-assist, and pedal-only (with 7-speeds). All of them are really easy to use and you can switch between them on the go depending on the terrain, your energy levels, and how much battery you have left!
What is the recommended tire pressure of Magicycle Ocelot Pro?
Magicycle Ocelot Pro should be between Min: 5 PSI ~ Max: 30 PSI.
Usually, you can check the recommended pressure on the tire sidewall which is how much you should inflate your tires.
Usually, you can check the recommended pressure on the tire sidewall which is how much you should inflate your tires.
Does the ebike come with a charger?
Yes, our eBikes come with a charger. All Magicycle ebike comes with a 3.0A fast smart charger. Additional chargers are available on our accessories page.
Can I have a test riding before purchase?
Sure! Here is the Dealer Map. You can put your address in and choose the nearby shop for a test drive.
How long for the delivery times?
Place your electric bike order now, ship in 2 working days from the warehouse in California, and another 3-7 days delivery by FedEx.
What's the 15 days return policy?
We hope you love your bike as much as we do, but if it turns out that you need to submit a request to return a bike thatdidn't fit your needswere pleased to offer a refund within 15 days from the day you receive it. (as long as your e-bike is in an as-new condition). We suggest that you keep the boxintact for a smooth return process.
